SBL type basket filter specifications, models and technical parameters
Note: The above pictures and parameters are for reference only and can be designed according to the user's process conditions.

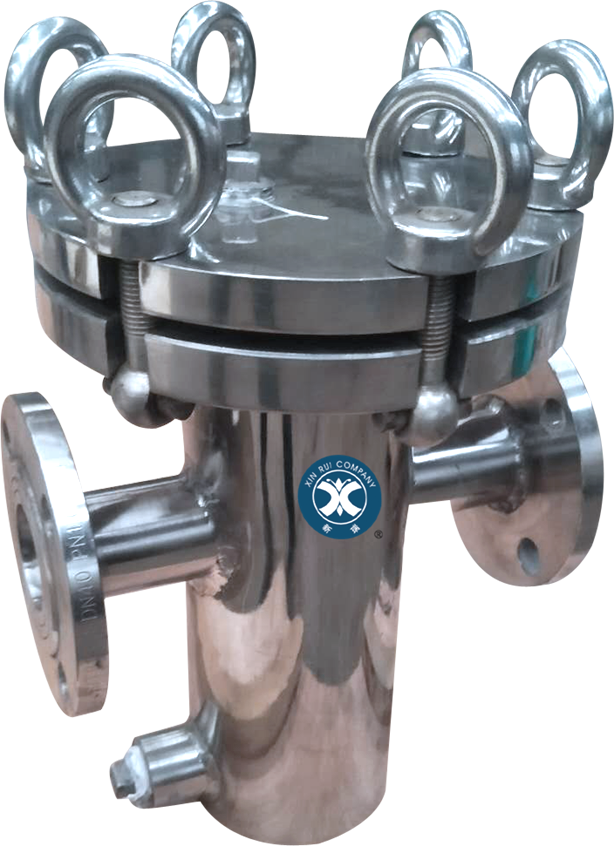

SBL II basket filter
Specifications, models and technical parameters
Note: The above pictures and parameters are for reference only and can be designed according to the user's process conditions.
SBL III basket filter
Specifications, models and technical parameters
Note: The above pictures and parameters are for reference only and can be designed according to the user's process conditions.
SBL IV basket filter
Specifications, models and technical parameters
Note: The above pictures and parameters are for reference only and can be designed according to the user's process conditions.
Product introduction
The SBF series fine filter is a high-precision filter device consisting mainly of filter media, housing and fixtures. Fluid from the fine filter bag filter blue filter pipe filter single bag filter multi-bag filter inlet through the filter material, the impurities are intercepted on the surface of the filter material and deep, the cleaning fluid flows out from the outlet, gathered in the filter The impurities on the material can be backflushed by pressure gas or water vapor (except for the filter bag), so that the impurities are separated from the filter material and discharged from the sewage outlet. The backflushing process can be automatically controlled according to the process requirements, enabling automatic backflushing and remote control.
Model label

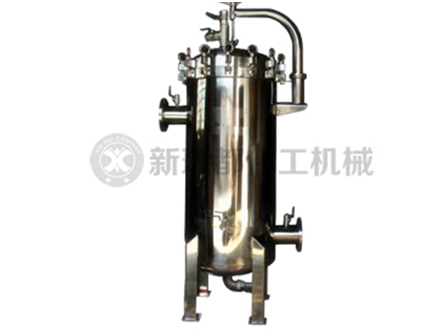

SBF-L type fine filter
Features
1) The filter medium is composed of various filter elements of different materials, which can be selected according to the production process.
2) The device has the advantages of large filtration area, small pressure loss, convenient operation and high separation efficiency. The highest filtration precision can reach 0.3μm.

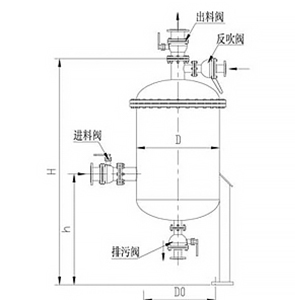

Structure form and dimensions
Note: The above pictures and parameters are for reference only and can be designed according to the user's process conditions.
Principle of bag filter system
The bag filter is a new type of filter system. The inside of the filter is supported by a metal inner net. The liquid flows in from the inlet and flows out through the filter bag. The impurities are intercepted in the filter bag. The filter bag can be replaced. Or continue to use after cleaning.
Product introduction
The SBD series bag filter is mainly composed of a filter bag, a filter frame and a casing. It is a simple, efficient and economical filter system. When the material enters the filter bag from above, the impurities are trapped in the bag to obtain a clean fluid. Because of its convenient operation, low cost, large processing capacity and high filtration precision, it is widely used in the filtration of petrochemical products, paints, food, beverages, sewage and so on. The SBD series of bag filters are suitable for filtration of any fine particles (<1000ppm) with an accuracy ranging from 1 to 1000μm and for liquid filtration from 1 to 1000m3/h.
Model label

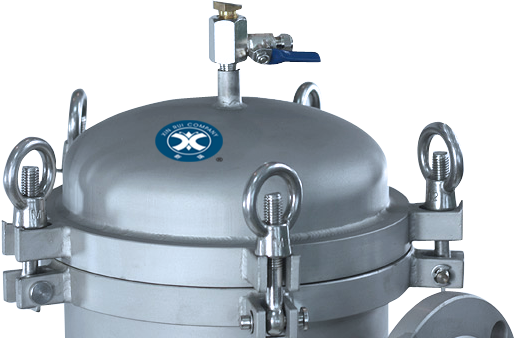

SBD-O single bag filter
Specifications, models and technical parameters
Note: 1. The flow in the table is based on water, and the working pressure is ≤1.0Mpa. 2, the above pictures and parameters are for reference only, can be designed according to user's process conditions.
SBD-M multi-bag filter
Specifications, models and technical parameters
Note: 1. The flow in the table is based on water, and the working pressure is ≤1.0Mpa.
2, the above pictures and parameters are for reference only, can be designed according to user's process conditions.
SBD-H parallel bag filter schematic
Filter bag structure
1. There are basically three types of materials for micron-sized liquid filter bags:
1. Surface filter material: The synthetic stainless steel mesh material only plays the role of surface filtration. The single wire mesh material is a high-strength, easy-to-clean woven material, and its pore size can be kept unchanged after heat setting. Each wire is a monofilament. This filter material has a filtration rating of 25-800 microns.
2. Non-woven material: The filter bag structure consists of three-dimensional high-floating fibers with high flow rate and high impurity capture. Larger particles are captured by the filter bag surface, while fine particles are captured in the deep filter media with surface. The dual function of filtration and depth filtration.
3. Adsorption filter material: polypropylene fiber fusion-adhesive filter material, which has strong adsorption capacity, can remove oil and hydrocarbon pollutants from flowing liquid, and is made of low-pressure difference filtration process. The filter bag removes very fine solid particles and is highly efficient.
Filter material aperture reference table
Filter structure
